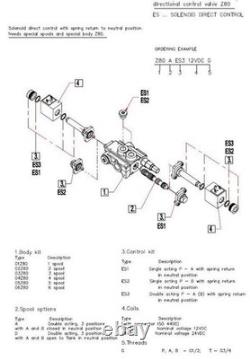

Directional Control Valve 6-spool Hydraulic Solenoid 80 L/Min 21GPM 12VDC



Directional Control Valve 6-spool Hydraulic Solenoid 80 L/Min 21GPM 12VDC. Directional control valve 6-spool hydraulic solenoid 80 l/min 21GPM 12VDC.

All three-position sliders on a spring, i. They return to the neutral position by themselves when the power supply is cut off.

Position 1 neutral (power supply cut off) cylinder piston rod stalls - oil goes to overflow. Position 2 operational (power supply to solenoid one only) cylinder piston rod extends.

Position 3 operating (power supply to solenoid two only) cylinder piston rod retracts. Internal threads in the body.

Connection port supply: 1/2'' BSP. Connection port return: 3/4'' BSP. Connection port sections: 1/2'' BSP.

Maximum supply pressure: 250 Bar (3625.94 psi). Maximum pressure on return: 50 Bar (725.19 psi).

Maximum pressure on sections: 300 Bar (4351.13 psi). The opening pressure of the bypass valve increases proportionally with increasing flow rate. 180 bar (2610.68 psi) at 20 l/min.

190 bar (2755.72 psi) at 40 l/min. 200 bar (2900.75 psi) at 60 l/min. 210 bar (3045.79 psi) at 80 l/min. It is recommended to check and set the correct pressure before commissioning. Self-adjustable, full rotation 30 Bar (435.11 psi change).

Temperature range and oil type. Permissible ambient temperature: -40°C to +60°C. Permissible oil temperature: -15°C to +80°C. Recommended hydraulic oil on mineral oil basis, e. HL 32 or HL 46. Recommended oil filtration of 10 - 15 µ.

Modification / Spools with 1 to 7. HIGH QUALITY Made in EU.

Is widely used in hydraulic systems in construction, industry and agriculture. The valve is adapted to various types of machines such as. Sprayers, turners, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, agricultural machines, tractors, industrial machines and other hydraulically operated equipment. Can be used with MF, CASE, Caterpillar, Komatsu, Volvo, JCB, Liebherr, Hyundai, Bobcat, Kawasaki, John Deere..... Sleeve is a device that allows an additional manifold to be connected by using a pressure transfer port.

This solution provides power to another valve from a normally closed port allowing high pressure to be transmitted. To use this function, it is necessary to remove the plug from the pressure transfer port and screw the pressure transfer sleeve in place. Max flow: 80 l/min (21GPM). Check out rest of our offers!
