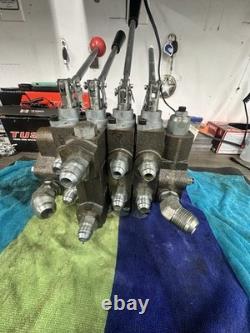

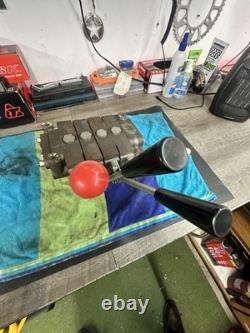

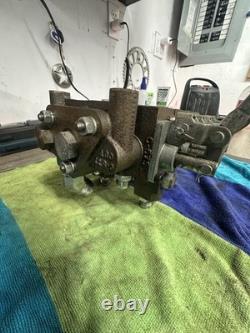

Prince Manufacturing 4 Spool Hydraulic Valve Excellent Condition


The Prince Model SV is a 12 GPM stackable directional control valve, which can be configured as a 4-spool bank to handle up to 3000 PSI. These sectional valves allow for 1-10 sections per bank, providing flexibility for custom hydraulic applications. Construction: High-tensile cast iron, sectional body. Port Size: #8 SAE O-ring ports standard. Spools: Hard chrome-plated spools, typically with load checks.

Operation: Open center (standard), with options for Power Beyond or Closed Center. Spool Action: 4-way, 3-position spring center is standard, with motor spool options available. Common ConfigurationsSVW1BA1: 4-Way/3-Position Cylinder Spool.

These valves are designed to be stacked, often using a tie-rod kit, and can be customized with various spool attachments such as spring center, 3-position detent, or float detent.
