Parker D3W004CNYWS3 Hydraulic Directional Control Valve 3-Position Solenoid

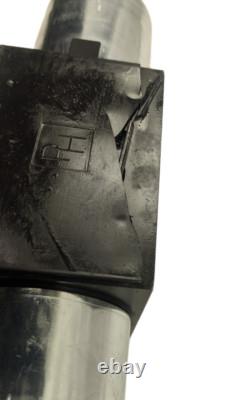

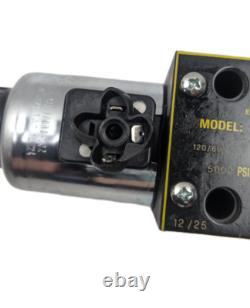

Parker D3W004CNYWS3 Hydraulic Directional Control Valve - 4-Way 3-Position Solenoid. Condition: Crack and damage to plastic housing and plug in port; please refer to pictures. No signs of use or installation attempts.

Valve Type: 4-way 3-positions (4/3) directional control. Valve Function: Hydraulic direct-acting double solenoid.

Mounting: Sub-plate mounting (NFPA pattern D05). Connector: 3-pin DIN 43650 (without plug)3-pin DIN 43650 connector (delivered without plug). Why Choose This Hydraulic Valve? Compact and proven Parker Hannifin design. High functional limits with safe operation.

Low pressure drop and energy losses. Versatile compatibility with hydraulic systemsBenefits include. Designed for oil-based hydraulic media.

Maximum Flow Rate: 40 GPM (150 L/min). Maximum Operating Pressure: 5000 psi (345 bar). Tank Pressure: 1500 psi (103 bar). Control Voltage: 110Vac (50Hz) / 120Vac (60Hz).

Orifice Diameter: 0.762mm (0.030). Media Temperature Range: -25°C to +70°C (-13°F to +158°F).

Ambient Air Temperature: -25°C to +60°C. Flow: 150L/min (LPM) / 40 gallons/min (GPM) max. Pressure: 5000psi / 345bar max. Tank pressure: 1500psi / 103bar.

Control Voltage (AC): 110Vac (50Hz) / 120Vac (60Hz). Verify exact compatibility with your specific hydraulic system. Mounting pattern: DIN 24340-A10 ISO4401 and NFPA D05 CETOP RP 121-H. UPS 3-Day, 2-Day, or Next Day Air. We believe you should have complete peace of mind when shopping with us. Welcome to Gizmos & Co! When you shop with us, you can expect. We provide clear, detailed listings so you know exactly what to expect.
