Hydraulic Directional Control Valve 45l/min for Double Acting Cylinders

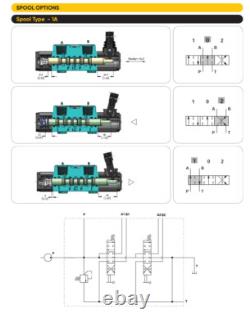

Manually or mechanically controlled hydraulic directional control valve is designed for distribution and control of working fluid between generator (pump) and executive mechanisms cylinder, hydro-motor, etc. It is manufactured with 2 plungers, with parallel connection, with common check valve and with safety valve. Valve is made out of a single block (monoblock).

Its body is made of cast iron EN-GJL-300. Plungers are made of carbonized steel with hard chrome plating. Type of hydraulic valve: Hydraulic monoblock directional control valve. Type of control: Hydraulic Hand Valve.

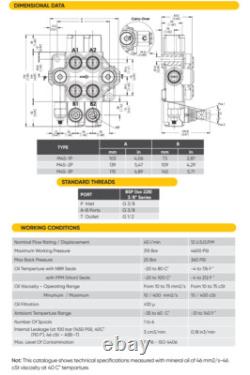

Internal valves connection system: parallel (also called independent, because internal valve in each section of this monoblock valve is functioning independently of each other). Mounting: 2 diagonal holes for M8 bolts.

Fluid medium: Mineral oil based hydraulic oil. 12.800 mm²/s permissible range.

20.100 mm²/s recommended range. Maximum Working Pressure (Series Circuit) 25 Bar. Oil Temperature with NBR Seals -20 to 80 C?
